1M 39in 3FT 3.0 SATA III 6Gbps Hard Drive or SSD Data Cable 1M

SERIAL ATA CABLE 40 Inch Data Cable

40 inch Cables with 7 Pin Connectors.

Features:

150/300/600 MByte/s

SATA-1,SATA-2,SATA-3

Hot-plugging capability

Two power saving modes: partial and slumber Overlapping (commands)

Tagged command queuing

Seven-wire data cable.

Connectors measure just 8 mm wide.

Technical Information on SATA:

Lower voltage signal level: The level of voltage to the Serial ATA is of differential 500 mV , and it's more suitable for PC's technical request than that of 5 Volt Parallel ATA, and it can save more power as well.

Pin Pitch Advantage: Serial ATA connector includes a line of 7Pin signal terminal and a line of 15Pin power terminal. These two lines of terminals can be detached to the freestanding tie-in, therefore, it not only reduces its body size but also enlarges its trans-positional space.

Transferring Speed Advantage: Transferring speed of 150MB/s, 300MB/s,600MB/s and Faster.

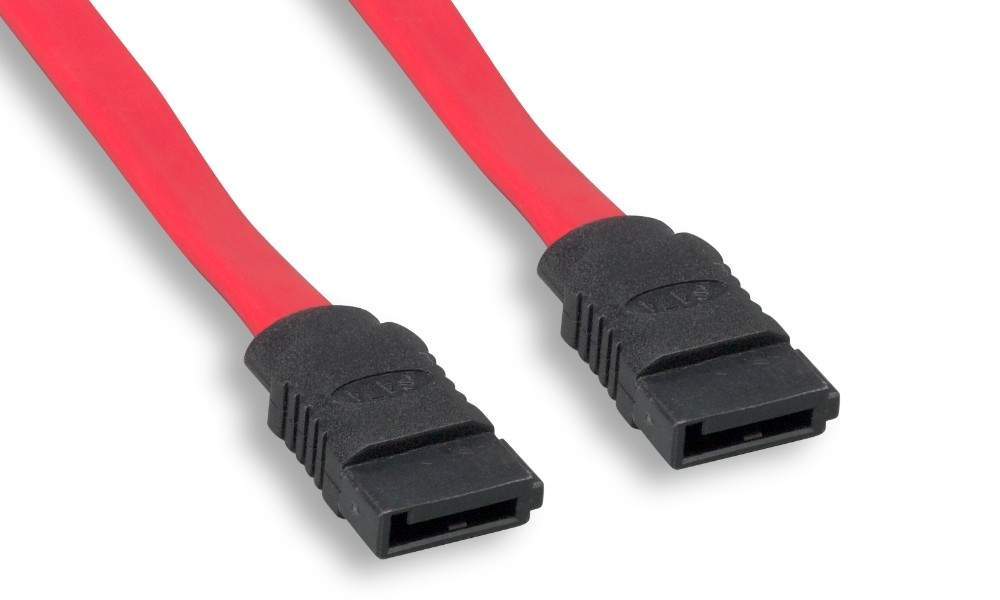

7-PIN 180 DEGREE SERIAL ATA DEVICE CABLE
Connect your serial ATA devices to motherboard for data transfer.
Support transfer rate up to 6 Gbps.
All relevant materials are complied with RoHS directive.
Connector A : Serial ATA 7 Pin Female
Connector B : Serial ATA 7 Pin Female
Conductor : 26 AWG
Cable Color : Red Color

Additional information on Serial ATA

Part # PCC-01617

$2.25

QTY DISCOUNT PRICING
1-9	10-99	100-999
$2.25	$2.15	$1.95

1FT 8IN-RED
1FT 8IN-RED
3FT 3IN-RED
