USB 2.0 PORT DUAL to MAINBOARD PORT Universal 16in

70500

A PCCables.com Exclusive

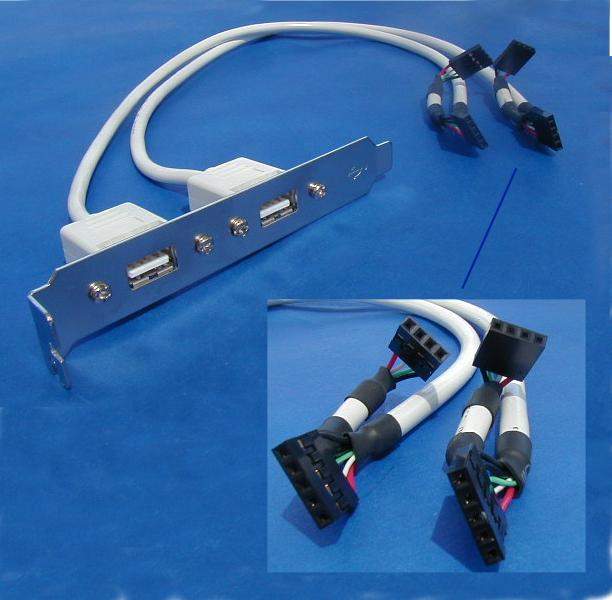

Dual Port USB (Universal Serial Bus) Cables and Backplate from motherboard to back of case. Allowing External connection of USB 2 (two) TYPE A connectors. Two sets of 5 pin row connectors to connect to main board.
Two sets of 4 pin row connectors to connect to main board.
Extra Long 14 Inch Plus Leader.

Each Port can be connected to only one 1x5 or 1x4
The other connector must be left free.
Otherwise you are shorting out a USB Port to another Unit.
Cable Pin Out
USB Port-1
Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
5	Black	Ground

Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground

USB Port-2
Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
5	Black	Ground

Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
Pigtail Length of 16.00 Inches
And 2.00 Inches to 4 Pin Connector
Part # 70500
$7.95
Quantity
500 In Stock

QTY DISCOUNT PRICING
1-910-99100-999
$7.95$7.00$6.50
8IN-BEIGE
1FT 2IN-WHITE
1FT 4IN-WHITE
1FT 4IN-WHITE
2FT-WHITE

Certifications:

ROHS3 ComplianceReach 211 Compliance
Technical Drawing for Part 70500
UPC:820799705005
