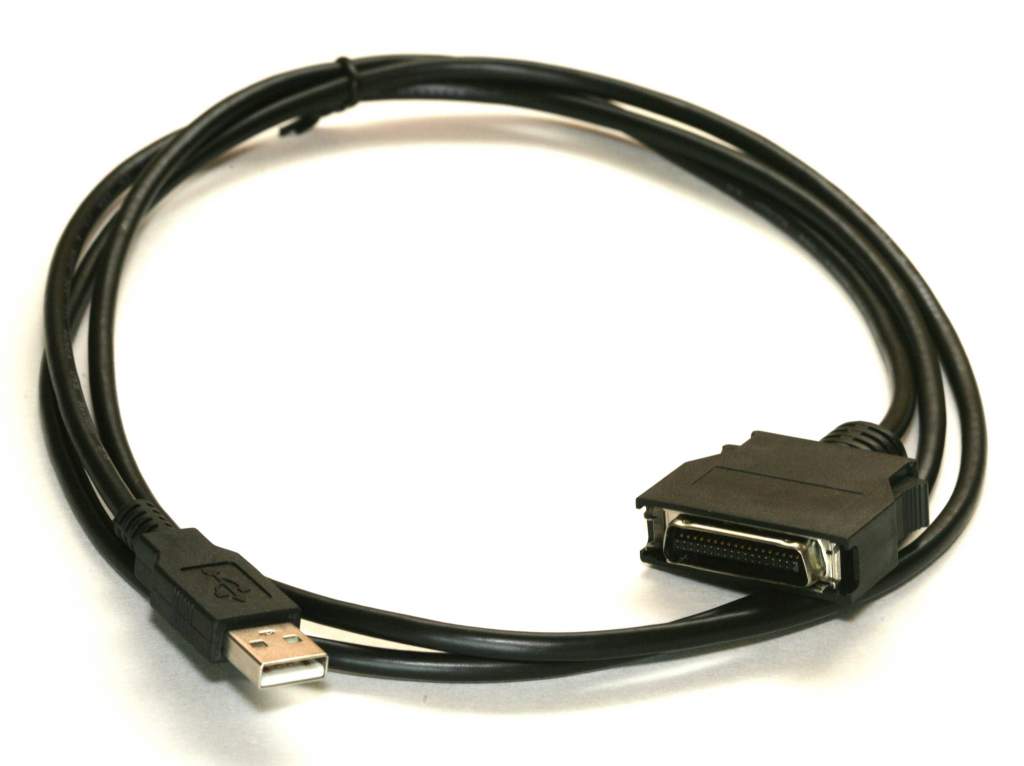

USB to CENTRONICS HPCN36 IEEE-1284 C Connector
Includes HPCN36 Adapter and USB to CN36 Cable.
This Half Pitch Connector is very popular on some the Older HP Product Printers.
Many new computers do not have a Parallel port.
This cable and adapter will allow you to make the Connection.
Small Centronics Connector is IEEE-C Connector.
Also Called Micro HP Centronics Connector and Mini HP Centronics Connectors.
Sometime Called Half Pitch Centronix
Parital List of Compatible Printers.
HP Business Inkjet 3000, 3000n, 3000dtn
HP Color LaserJet 3500, 3500n
HP Color LaserJet 3700, 3700dn, 3700dtn, 3700n
HP Color LaserJet 4500, 4500n
HP Color LaserJet 4550, 4550dn, 4550n
HP Color LaserJet 4600, 4600dtn, 4600hdn, 4600n
HP Color LaserJet 4610n
HP Color LaserJet 4650, 4650dn, 4650dtn, 4650hdn
HP Color LaserJet 4700, 4700dn, 4700dtn, 4700n
HP Color LaserJet 5500, 5500dn, 5500n
HP Color LaserJet 5550, 5550dn, 5550dtn, 5550hdn, 5550n
HP Color LaserJet 8500, 8500dn, 8500n
HP Color LaserJet 8550, 8550dn, 8550gn, 8550n
HP Color LaserJet 9500, 9500gp, 9500hdn, 9500n
HP DesignJet 5000, 5000ps, 5000uv
HP DesignJet 5500, 5500uv, 5500ps, 5500psuv
HP LaserJet 1100, 1100xi
HP LaserJet 3100, 3100se, 3100xi
HP LaserJet 3150, 3150se, 3150xi
HP LaserJet 3200se
HP LaserJet 6mp, 6p, 6pse, 6pxi
HP LaserJet 8000, 8000dn, 8000n
HP LaserJet 8100, 8100dn, 8100mfp, 8100n
HP LaserJet 8150
HP LaserJet 9000
HP LaserJet 9050, 9050dn, 9050n
HP Mopier 240, 320
HP OfficeJet D135
HP OfficeJet D155xi
HP OfficeJet G55, G95
HP OfficeJet R40, R40xi, R45, R60, R65, R80, R80xi
HP Color LaserJet 4730
HP Color LaserJet 8550mfp
HP Color LaserJet 9500mfp
HP Color LaserJet CM4730 MFP
HP LaserJet 1100A
HP LaserJet 3100
HP LaserJet 3150, 3150se, 3150xi
HP LaserJet 3200, 3200m
HP LaserJet 8150mfp
HP LaserJet 9000L MFP, 9000mfp
HP Officejet D125xi, D135, D145, D155xi
HP Officejet G55, G85, G95
HP Officejet R40xi, R45, R65, R80xi
HP psc 500
Special Notes on Selecting Printer Port.
Additional Tips:
Setting Printer Port Instructions:
Go to Control Panels.
Go to Harware and Sound / View Devices and Printers.
Right Click on your Printer.
Select Printer Properties.
Select Ports TAB.
Select USB Virtual Printer Port.(EX: USB001,USBLPT)
Device Manager should have the USB Printer Support Loaded.
Drivers Note:
The Device Driver Loads Automatically for this Item.
And Assigns Port USBLPT(1..9) or USB001..USB009
The Printer Driver needs to be loaded from the Printers Manufacture Website.
Example for HP Printers: https://support.hp.com/us-en/drivers
