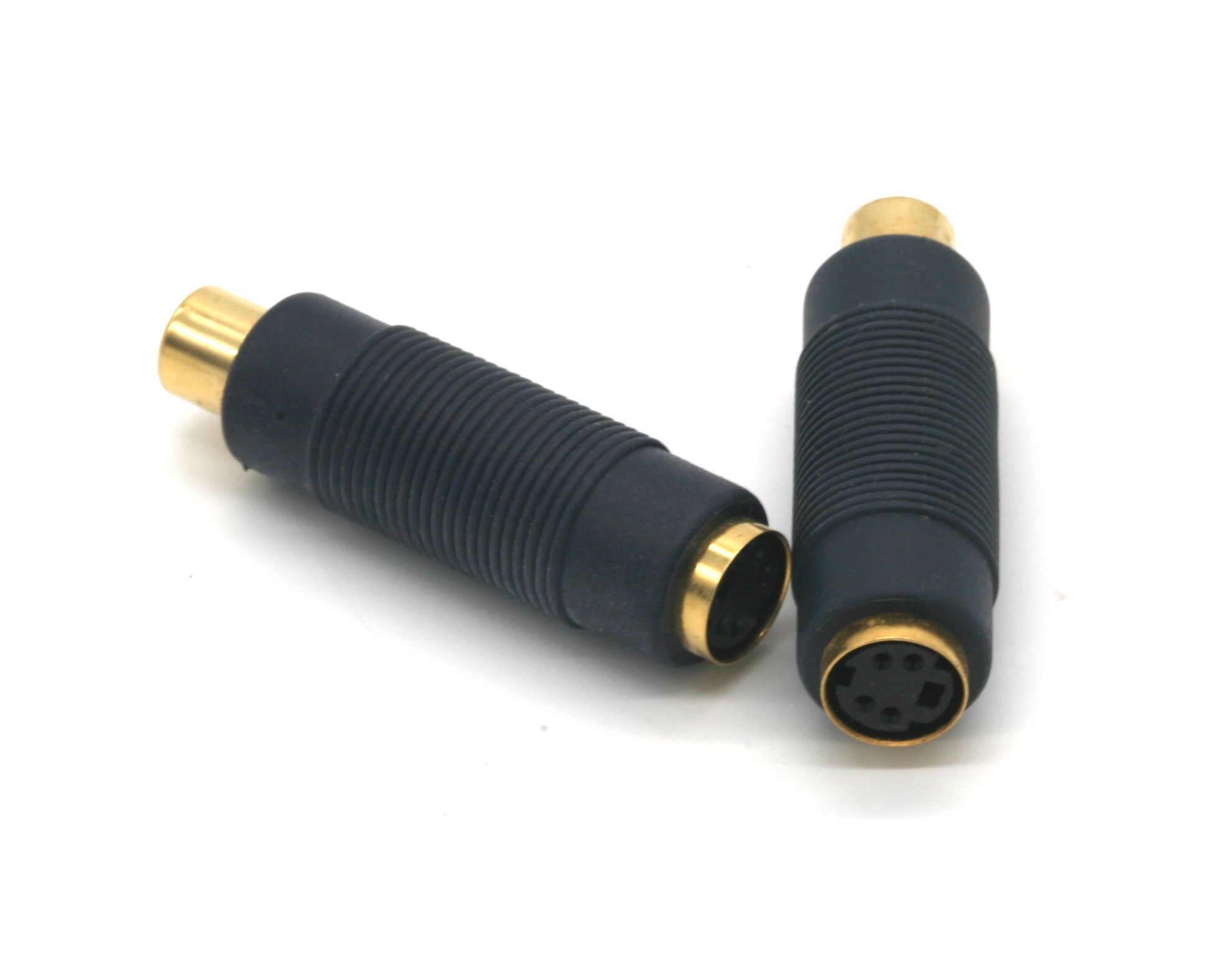

SVideo Adapter Mini Din 4 Female to RCA-F
Part # PCC-70714
$5.50
QUANTITY DISCOUNT PRICING |
1-9 | 10-99 | 100-999 |
$5.50 | $5.25 | $5.00 |
Combines the Luminance and Chrominance.
SVIDEO Mini Din4 Female to RCA Female.
Called a Base Band Converter.
This bidirectional Adapter will convert in either Direction.
RCA to SVIDEO
SVIDEO to RCA
Minor video loss can be expected in the SVIDEO->RCA Conversion.
Svideo Wiring to Dual RCA Wiring.
4 PIN MINI-DIN FEMALE RCA-FEMALE
Name Description
GND Ground (Y) Gold Shield
GND Ground (C) Gold Shield
Y Intensity (Luminance) Gold Hole
C Color (Chrominance) Gold Hole
Please Note this uses a Cap-Res combination to accurately combine,
The Chrominance and Luminance.
Many Competitors do not use this and the picture becomes unstable
