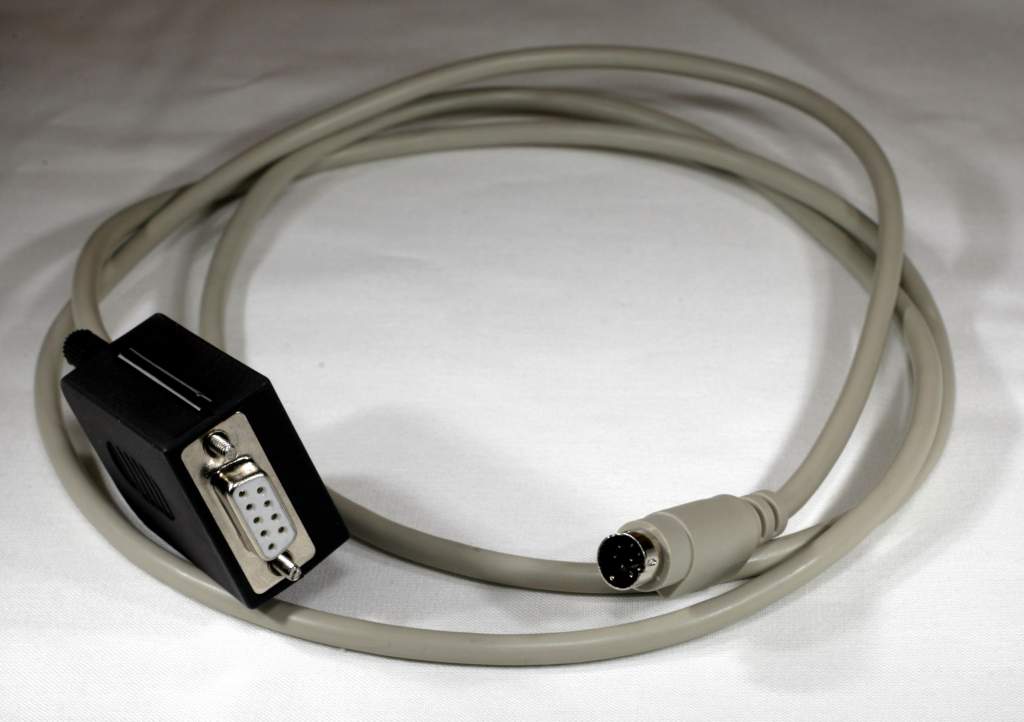

Tripp-Lite Compatible 73-1025 Cable
Cable used on Power Transfer Switches to Program and setup Devices.
Used on :
PHUMH20ATNET
Possibles Passwords for Device Login:
admin admin
root TrippLite
Color Codes for MiniDin8 Wire if you want change Configuration.
MiniDin 8 Male DB9-Female
1=BROWN
2=RED
3=ORANGE
4=YELLOW Pin 5
5=GREEN Pin 3
6=BLUE Pin 2
7=PURPLE Pin 7
8=BLACK Pin 8
Sheild=SILVER Ground Shield
Some Models that Used the 8-Pin Config Port
PDUMH15HVNET
PDUMH20HVNET
MODELS IT WILL NOT WORK ON : PHUMH15ATNET
Tested on Above using Standard 9600 Baud Rate.
Reboot System Switched Rack and on Start up hit ENTER a Couple of Times.
