Combines the Luminance and Chrominance.

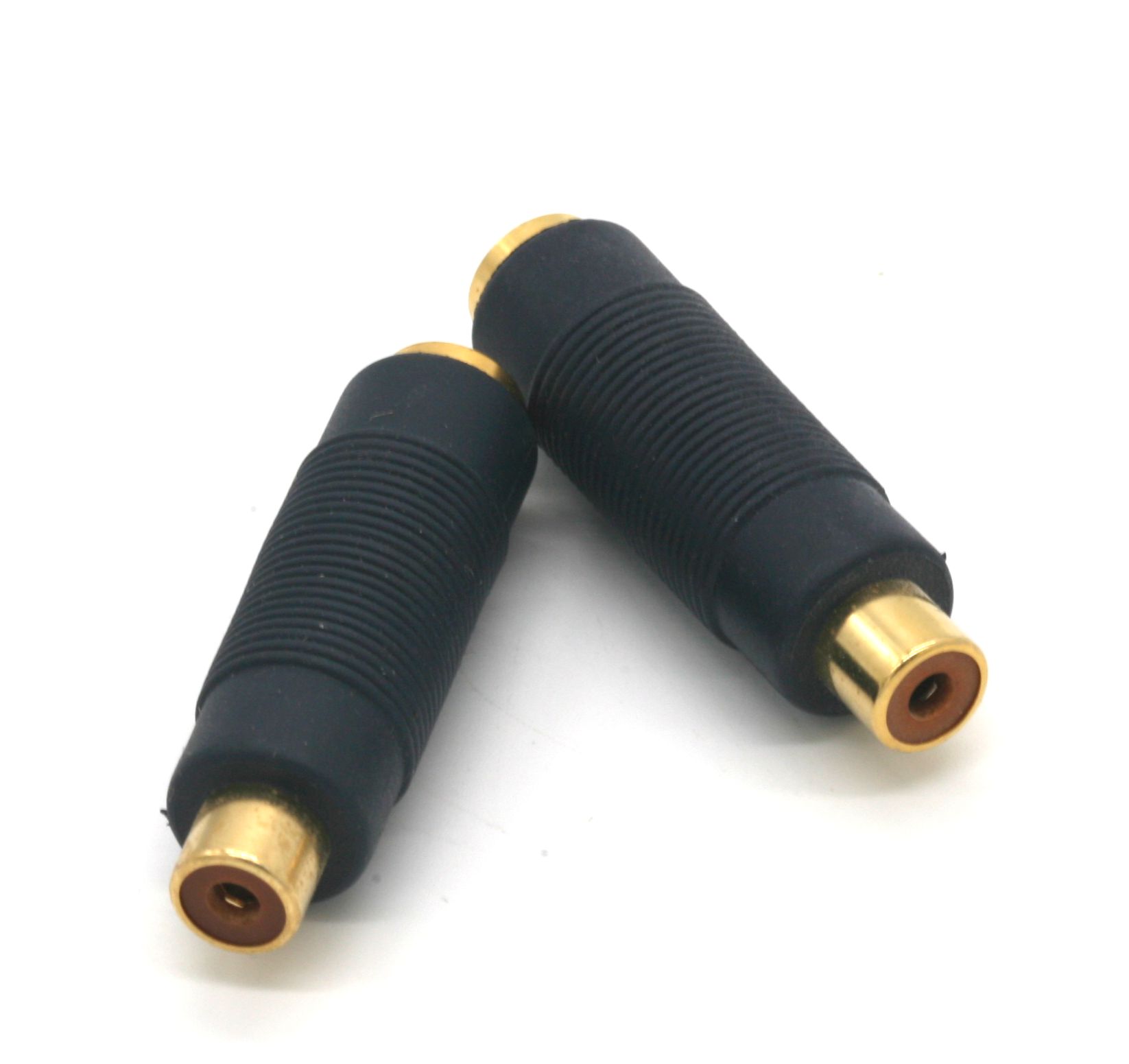

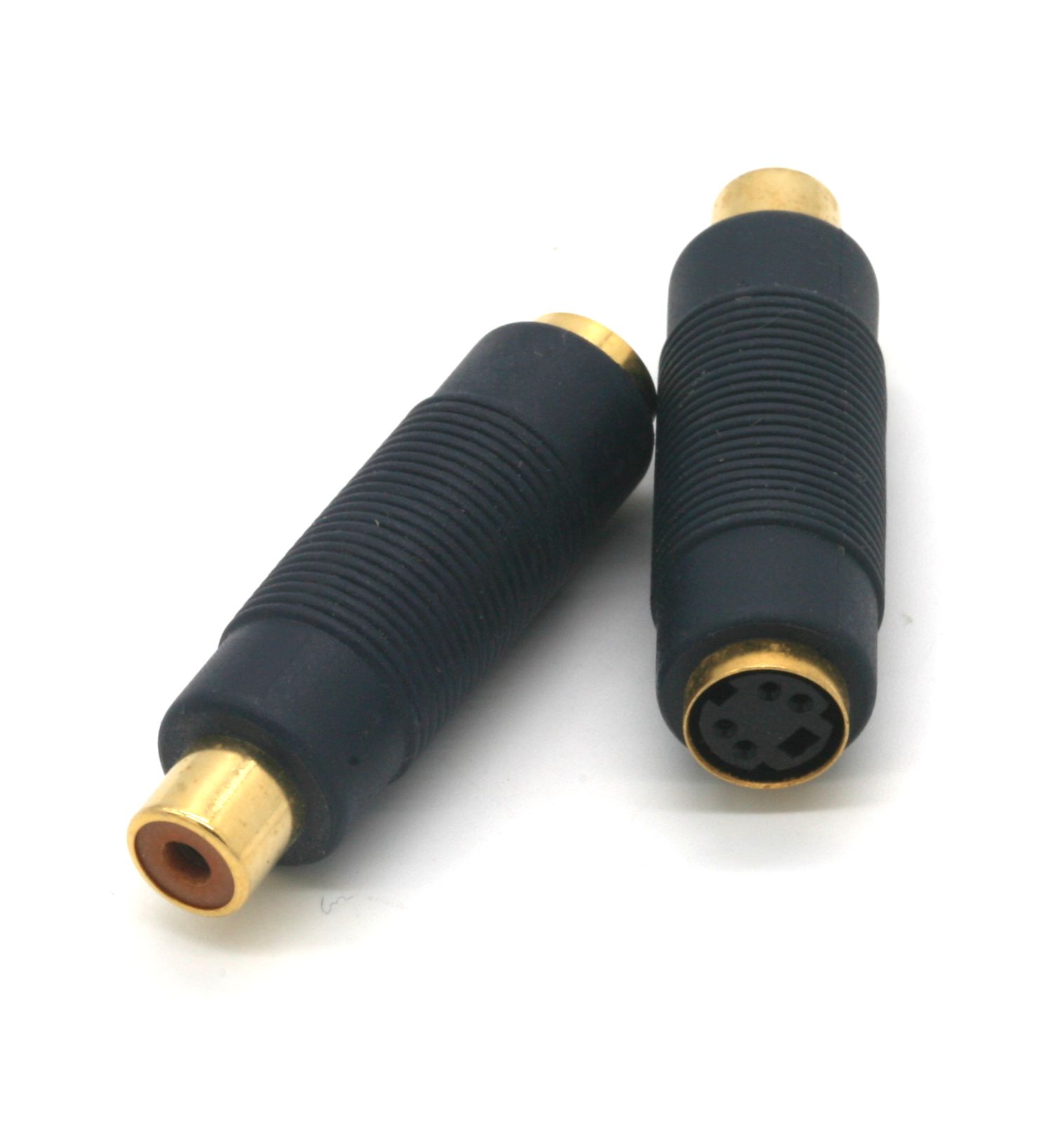

SVIDEO Mini Din4 Female to RCA Female.
Called a Base Band Converter.
This bidirectional Adapter will convert in either Direction.
RCA to SVIDEO
SVIDEO to RCA
Minor video loss can be expected in the SVIDEO->RCA Conversion.
Svideo Wiring to Dual RCA Wiring.
4 PIN MINI-DIN FEMALE RCA-FEMALE
GND Ground (Y) Gold Shield
GND Ground (C) Gold Shield
Y Intensity (Luminance) Gold Hole
C Color (Chrominance) Gold Hole
Please Note this uses a Cap-Res combination to accurately combine,
The Chrominance and Luminance.
Many Competitors do not use this and the picture becomes unstable
