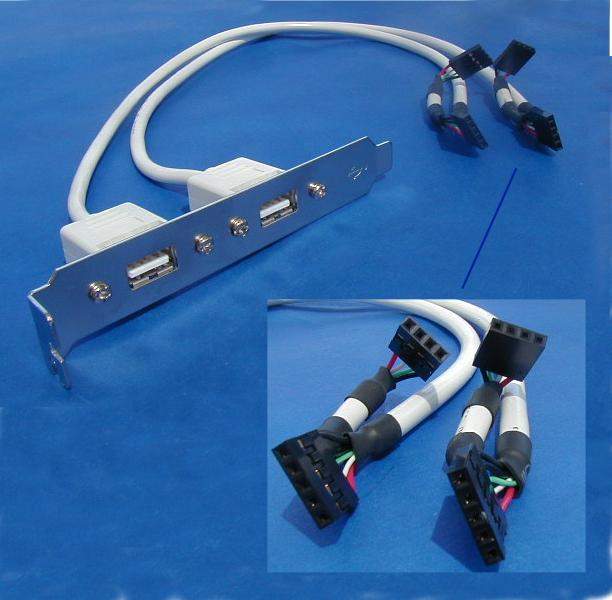

USB PORT DUAL to MAINBOARD PORT 2x5 14in INTEL

USB to Main Board 2x5 Layout
14 Inch Leads
Layout on Intel Mother Boards

Works with:
Intel® Desktop Board D850GB (PC600 / PC800 RDRAM* RIMM Memory)
Intel® Desktop Board D850MD (PC600 / PC800 RDRAM* RIMM Memory)
Intel® Desktop Board D850MV (PC600 / PC800 RDRAM* RIMM Memory)
Intel® Desktop Board D845HV (PC133 SDRAM Memory)
Intel® Desktop Board D845WN (PC133 SDRAM Memory)
Intel® Desktop Board D845BG (DDR SDRAM 200/266 Memory)
Intel® Desktop Board D845PT (DDR SDRAM 200/266 Memory)
Thanks to those who supplied the Above information.
Most likely works with all Intel Extra USB ports.

PINOUT:
Pin			Pin
1 VCC(Red)		2 VCC(Red)
3 Data-(White)	4 Data-(White)
5 Data+(Green)	6 Data+(Green)
7 Ground(Black)	8 Ground(Black)
9 Shell(Black)	10 Shell(Black)

Watch the +5 Volts VCC(Red)
